产品展示
PRODUCT

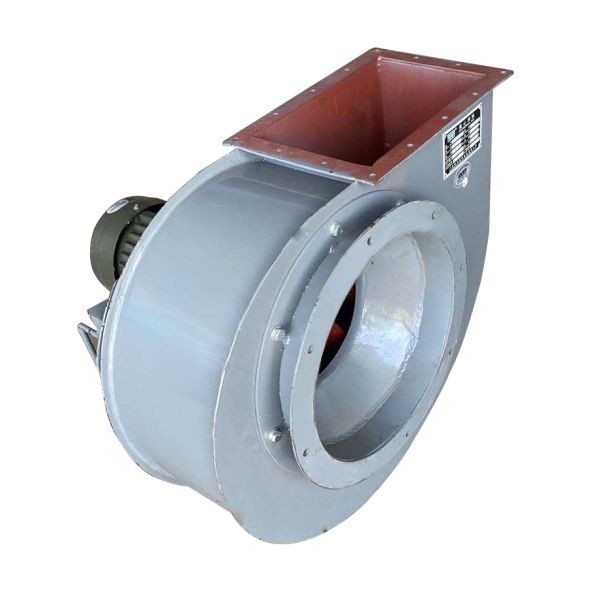

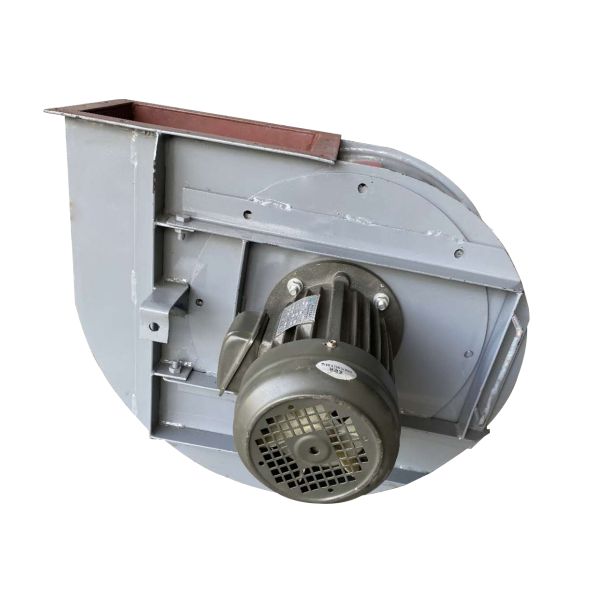

在TFFA基础上针对净化涂装市场开发的立式专用机型

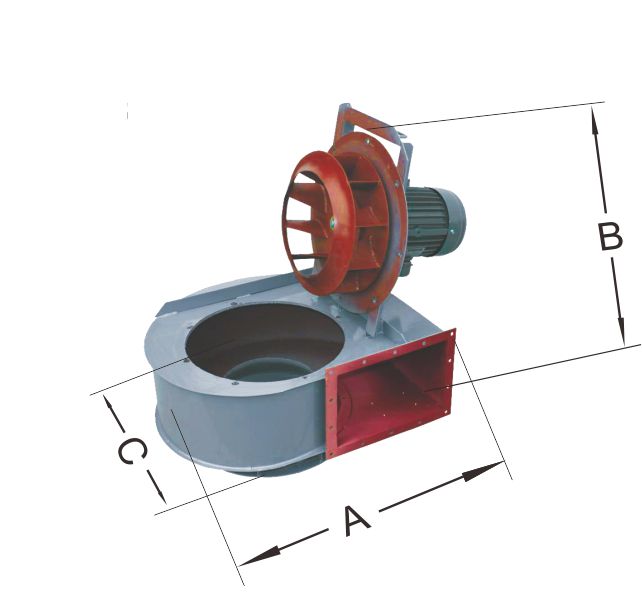

风机结构先进，可以不用打开管道的情况下将叶轮翻转进行维修清理
风机流量大，静压高
广泛用于净化涂装框，或其他设备配套使用
机号范围：355-710mm共7个机号
Vertical type fan developed specially to point at the painting industry
on the base of TDFA
Advanced structure ,easy to maintain and clean by turning
over the impeller and no need to open the duct
Large air volume and high static pressure
Widely used in painting cabinet purifying ,or used in matching
equipment
Models no.:2.8A-6A ,total 7 models
产品详情
|
型号
Model |
电压
Voltage |
功率
Power |
转速
Revolution |
风量
Air Volume |
风压 Wind pressure （Pa） |
规格
Specifications |
总重量
Total weight |
叶轮重量 Wind wheel Weight (Kg) |
入风口尺寸Air inlet size |
出风口尺寸 Air outlet size |
整机单价 Unit price of complete machine （RMB） |
风轮价 Wind turbine price （RMB） |
|
2.8A |
380 |
1.5 |
2900 |
1300-2810 |
1000-600 |
570x560x480 |
|
|
Φ280 |
224x196 |
1900 |
500 |
|
3.2A |
380 |
2.2 |
2900 |
2688-3517 |
1300-792 |
875x550x685 |
|
|
Φ320 |
260x224 |
2200 |
600 |
|
3.6A |
380 |
3 |
2900 |
2664-5268 |
1578-989 |
940x605x765 |
|
|
Φ360 |
288x252 |
2800 |
700 |
|
4A |
380 |
5.5 |
2900 |
4012-7419 |
3014-1320 |
1050x705x765 |
|
|
Φ400 |
320x280 |
4400 |
800 |
|
4.5A |
380 |
7.5 |
2900 |
5712-10562 |
2554-1673 |
1050x705x955 |
|
|
Φ450 |
360x315 |
5000 |
900 |
|
5A |
380 |
15 |
2900 |
7728-15455 |
3187-2019 |
1347x858x1057 |
|
|
Φ500 |
400x350 |
7200 |
1000 |
|
6A |
380 |
4 |
1400 |
6677-13353 |
1139-724 |
1356x770x1256 |
|
|
Φ600 |
480x420 |
5700 |
1200 |
|
5.5 |
1400 |
7207-15322 |
1210-810 |
1356x770x1256 |
|
|
6300 |
