产品展示
PRODUCT

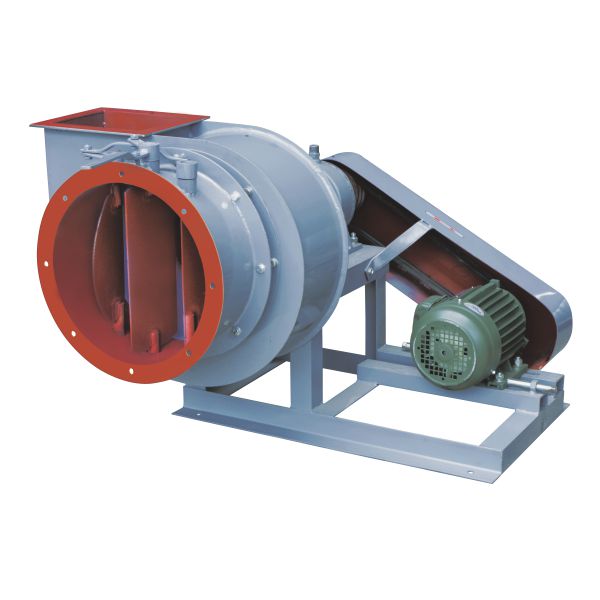

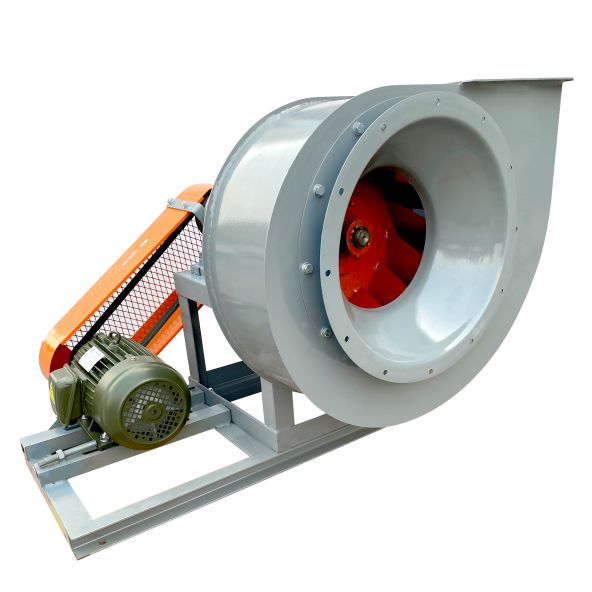

适用于燃用各种煤质并配有消烟除尘装置的0.2-20顿/小时的工业锅炉或生活锅炉
输送气体温度≤250°
90°、180°、0°三种安装角度可调
型号：3.15C-12D共13个
Designed for various coal property burning 0.2-20t/h industrial boiler or domestic boiler which is installed with smoke and dust extracting equipment
Temperature of conveying air is below 250℃
There adjustable air outlet angles : 90°、180°、0°
Model no.:3.15C-12D, total 13 models
产品详情
|
型号
Model |
功率
Power |
转速
Revolution |
风量
Air Volume |
风压 Wind pressure （Pa） |

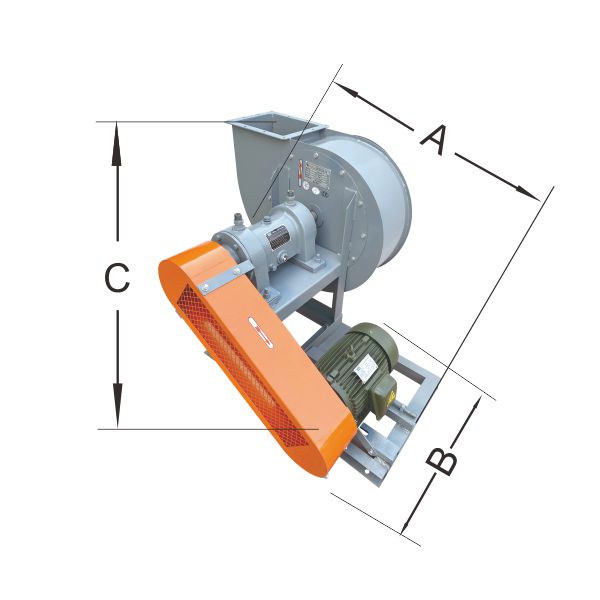

规格
Specifications |
规格
Specifications |
壳叶重量
Shell weight |
叶轮重量 Wind wheel Weight (Kg) |
入风口尺寸Air inlet size |
出风口尺寸 Air outlet size |
叶壳供应价Unit price of complete machine （RMB） |
调节门单价 Unit price of regulating door （RMB） |
叶轮价 Impeller price （RMB） |
|
3.15C |
1.5 |
2900 |
1218-2297 |
883-608 |
1060x840x560 |
900x840x720 |
85 |
8 |
内：Φ280/外Φ330 |
158x200 |
2260 |
360 |
400 |
|
4C |
4 |
2900 |
2151-5190 |
1922-1393 |
1200x890x680 |
1000x890x870 |
123 |
11 |
内：Φ360/外Φ430 |
200x253 |
2900 |
430 |
540 |
|
3 |
2620 |
2417-4561 |
1481-1079 |
200x253 |
|||||||||
|
5C |
7.5 |
2900 |
4723-8909 |
2324-1687 |
1390x950x680 |
1130x950x1050 |
155 |
22 |
内：Φ450/外Φ510 |
250x316 |
4400 |
600 |
720 |
|
5.5 |
2620 |
4267-8048 |
1893-1373 |
250x316 |
|||||||||
|
6C |
18.5 |
2850 |
8020-15129 |
3364-2452 |
1570x110x960 |
1300x1010x1250 |
200 |
34 |
内：Φ500/外Φ570 |
300x380 |
6600 |
920 |
1360 |
|
15 |
2620 |
7372-13908 |
2844-2069 |
300x380 |
|||||||||
|
7C |
30 |
2580 |
11529-21747 |
3756-2746 |
1880x1260x1140 |
1560x1260x1470 |
331 |
35 |
内：Φ600/外Φ680 |
350x403 |
9600 |
1420 |
1860 |
|
22 |
2320 |
10367-19556 |
3040-2206 |
350x403 |
|||||||||
|
18.5 |
2200 |
9830-18545 |
2376-1991 |
1950x1140x1360 |
1800x1140x1480 |
331 |
35 |
内：Φ600/外Φ680 |
430x520 |
8600 |
1420 |
1780 |
|
|
15 |
2050 |
9159-17280 |
2373-1716 |
430x520 |
|||||||||
|
8C |
30 |
2020 |
13474-25417 |
3001-2187 |
1414x1187x1020 |
1600x1187x88888888 |
350 |
43 |
内：Φ700/外Φ700 |
610x400 |
11400 |
1800 |
2800 |
|
22 |
1860 |
12407-23404 |
2550-1853 |
Φ800 |
580x390 |
||||||||
|
9C |
45 |
1900 |
18045-34039 |
3364-2452 |
2080x1400x150 |
2000x1400x1670 |
445 |
81 |
Φ900 |
580x390 |
16800 |
2300 |
3600 |
|
37 |
1800 |
17095-32247 |
3032-2197 |
